Hubble · Solar Batteries

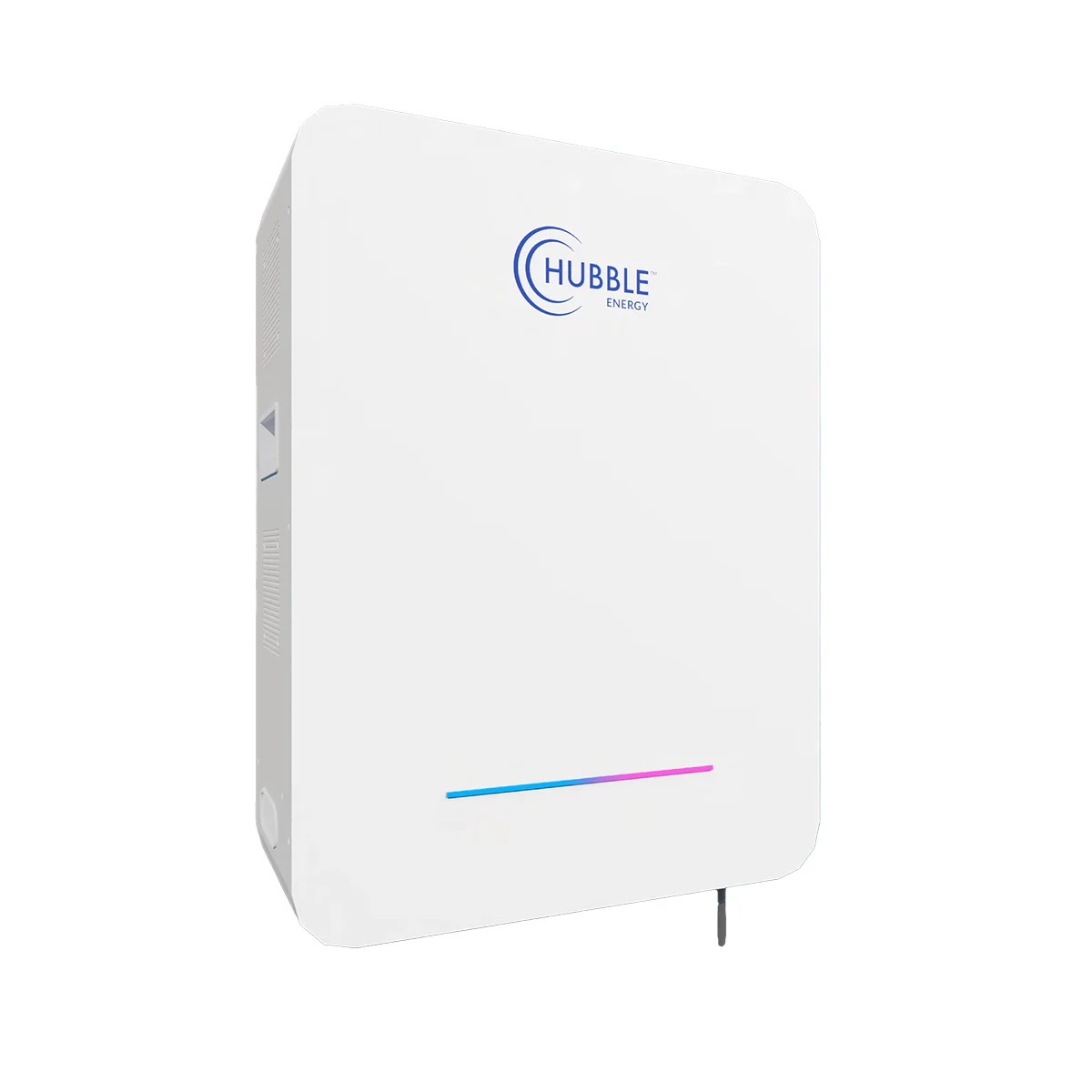

Hubble Energy AM-10+, 10kWh 51.2V Battery
★★★★★
In stock
R39,220
R43,850
SAVE R4,630
incl. 15% VAT
Request stock & datasheet
Insured nationwide delivery
Certified installers only
Manufacturer warranty
Hubble Lithium AM10+, 10kWh 51.2V Battery
Hubble Lithium's AM10+ model is a low voltage (51V), 10kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.
Features:
- Unlimited Cycle Warranty (Terms & Conditions Apply)
- Prismatic LiFePO4 Cells for enhanced durability and performance
- 1C High Performance Lithium Battery for efficient energy delivery
- Integrated 24/7 Monitoring with the Hubble Cloudlink
- Advanced BMS with current limiting functionality for optimal operation
- Easy Wall Mount Installation for space-saving convenience
- Informative RGB LED Display Strip for at-a-glance system status
- High Cycle and Service Life for long-term reliability
- Compatible with Most Inverters and Chargers for versatile integration
- Built-in Protection against over-charge, over-discharge, and over-temperature
- CAN Bus Compatibility for seamless communication with leading inverter brands
- Scalable System design, supporting up to 15 units for expanded capacity
- Compatible with AM-10 (with Cloudlink) for added functionality and control
Specifications:
- Model: Hubble AM-10+
- Battery Type: LiFePO4 (LFP) with 16 cells per battery
- Nominal Voltage: 51.2 Vdc
- Nominal Energy: 10 kWh
- Design Capacity: 200 Ah
- Operating Voltage Range: 43.2 Vdc – 58.4 Vdc
- Charging Voltage: 55.2 Vdc
- Charge Current (Max): 115 A
- Discharge Current (Max): 200 A
- Cell Service Life: Unlimited cycles within the 10-year warranty (Terms & Conditions Apply)
- Design Lifetime: 15 years
- Power Consumption: ≤ 2 W
- Cell Balancing: Passive, activated when cells are near full charge voltage
- Intelligent Current Limiter: Limits charging current to 20 A if it exceeds 200 A
- Protection: Over-charge, over-discharge, over-current, short circuit, and over/under-temperature
- Power Consumption: ≤ 2 W
- Wi-Fi Protocol: 802.11 b/g/n/e/i (supports 802.11n up to 150 Mbps)
- Communication Interfaces: CAN / RS485 / RS232
- Dimensions: 675 mm (Height) × 510 mm (Width) × 230 mm (Depth)
- Weight: 89 kg
Please EMAIL for stock availability
(E&OE)
No additional specifications available.
Full technical documentation is available on request. Email info@getgreenenergy.co.za and we'll send the current datasheet, installation guide and warranty terms.
