Pylontech · Solar Batteries

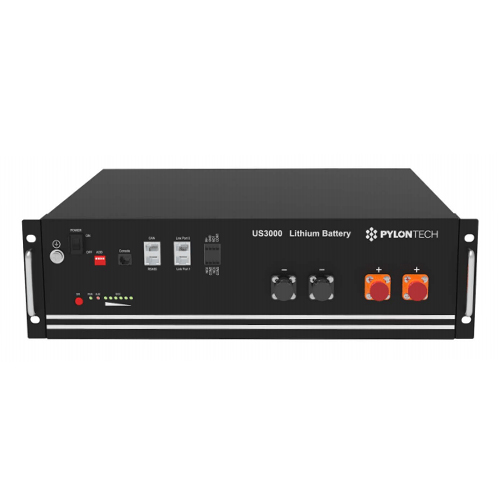

Pylon US3000C 3.5kWh Li-Ion Solar Battery (excl. brackets)
★★★★★
Out of stock
R14,730
R17,280
SAVE R2,550
incl. 15% VAT
Enquire about stock →
Request stock & datasheet
Insured nationwide delivery
Certified installers only
Manufacturer warranty
Description
PylonTech US3000C 3.5KW
- Developed with our own LFP (lithium iron phosphate) cell to ensure the highest safety
- Self-designed BMS protects the cell in all angels such as abnormal temperature, current, voltage, Soc, SoH
- Vertical industry integration ensures more than 6000 cycles with 90% DoD
- Modular design gives the end customers the power of choice of capacity
- Compatible with most of the available Hybrid inverters
- Simple buckle fixing minimize the installation time and cost
- The third generation US2000C and US3000C are compatible with US2000 and US3000
- Provides pre-charge function to protect ESS system from surge current.
| Nominal Voltage CV) | 48 |
|---|---|
| Nominal Capacity (Wh) | 3552 |
| Usable Capacity (Wh) | 3200 |
| Dimension (mm) | 442*420*132 |
| Weight (Kg) | 32 |
| Discharge Voltage CV) | 45 -53.5 |
| Charge Voltage CV) | 52.5-53.5 |
| Charge / Discharge Current C(A) | 37 (Recommend) 74 (Max) 100 (Peak@15s) |
| Communication Port | RS485, CAN |
| Single string quantity(pcs) | 8 |
| Working Temperature/°C | 0-50 |
| Shelf Temperature/°C | -20-60 |
| Authentication Level | UL/IEC626 l 9/CE /UN38.3 |
PLEASE EMAIL FOR STOCK AVAILABILITY
(E&OE)
No additional specifications available.
Full technical documentation is available on request. Email info@getgreenenergy.co.za and we'll send the current datasheet, installation guide and warranty terms.
