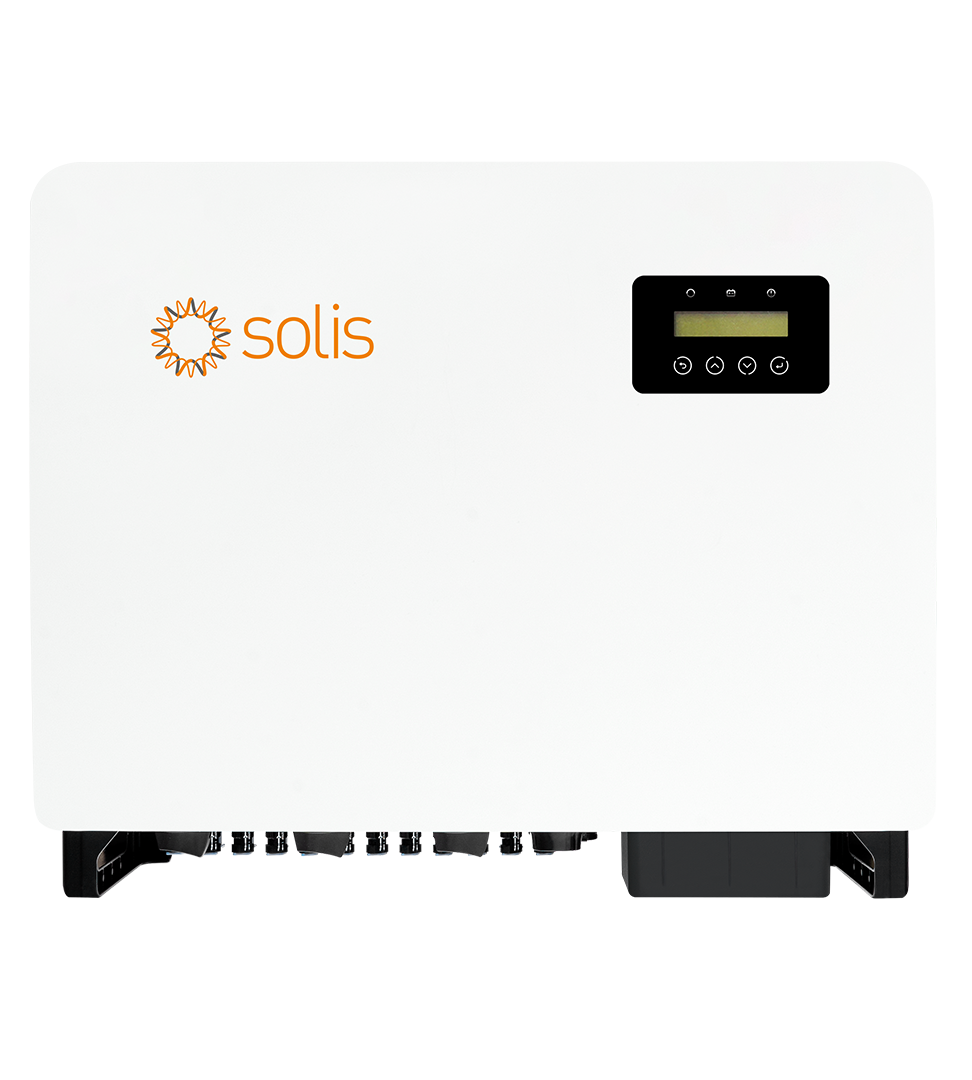

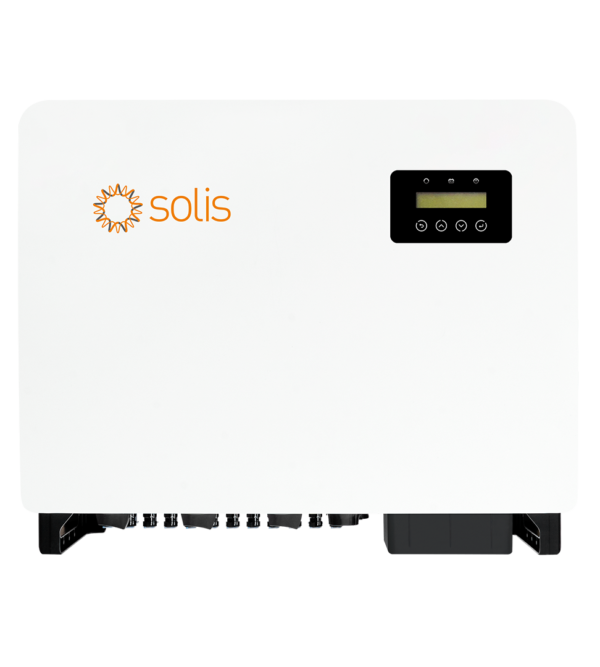

Product Features:

• Max. efficiency of 98.7%
• Type-II over-voltage surge protection for both DC and AC
• Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
• Max PV DC Power of 75kW
• 32A input per MPPT, 16A input for each PV string
• Maximum output power of 55kW
• 5 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
• Intelligent monitoring, Smart I-V Curve Diagnosis
• Integrated AFCI (DC arc-fault circuit protection)
• IP66 Rated and C5 Anti-Corrosion Level
• Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
• DC reverse-polarity protection
• Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
• 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

Important

• German and Dutch Installation Manuals still pending from the manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.
  This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.

SA: NRS-097-2-1 Certified
