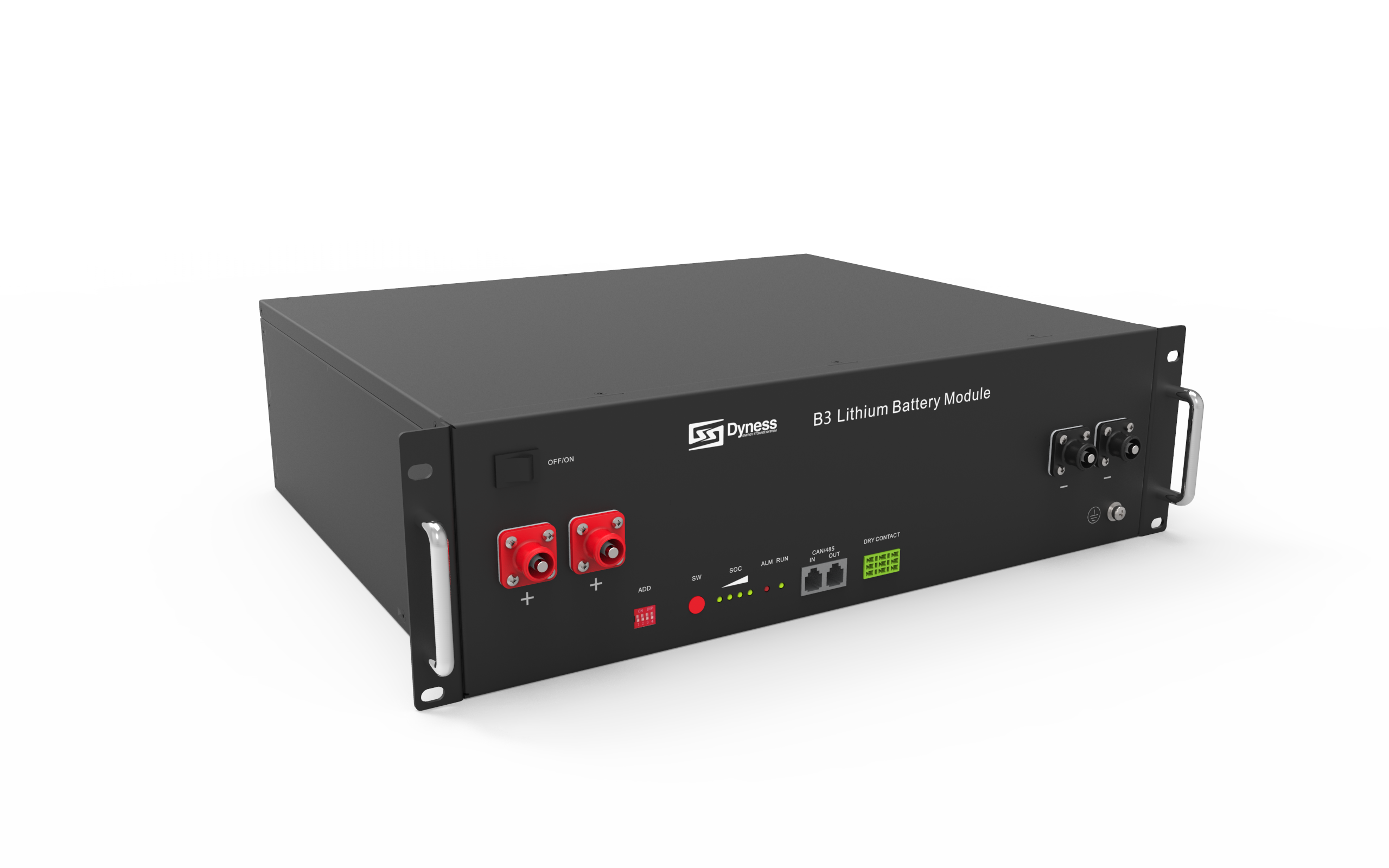

Dyness B3 3.6KWH Lithium Rack Mount Battery (B4874)
Description
While the battery holds 3.6kWh of energy, no battery should ever be fully discharged. The Dyness B3 3.6kWh battery can comfortably be discharged to a depth (DoD) of 80% and deliver 6000 cycles (from 100% to 20%). This means the battery holds approximately 2.88kWh of usable energy. This means, for example, that you can power electrical appliances that consume 720 Watts for 4 hours, or 1.15 Kilowatts for 2.5 hours, or 1.44 Kilowatts for 2 hours. This makes this battery a suitable size for many households and small-to-medium sized businesses.
Features
- Nominal Energy: 3.552kWh
- Nominal Capacity: 74Ah
- Nominal Voltage: 48V
- Max. Continuous Discharge Current: 50A
- Max. Continuous Charge Current: 50A
- Charging Cut-Off Vol: 54V
- Discharging End-Off Vol: 40.5V
- Net Weight: 30kg
- Dimensions (W*D*H): 480*360*133.5mm
- Protection Level: IP20
- Calendar Life: 6000 Cycles
- Charging Temperature Range: 0~50ºC
- Discharging Temperature Range: -20~50ºC
- Communication: CAN / RS485
- Configuration: up to 142kWh total energy, 40 modules parallel at most
- Recommend C Rate: 0.5C
- Warranty: 10 years
Email for Stock Availability
No additional specifications available.
Full technical documentation is available on request. Email info@getgreenenergy.co.za and we'll send the current datasheet, installation guide and warranty terms.
Request datasheet (PDF) →
